Understanding the 1500W Industrial Battery Charger Smart LED Display: Specs, Applications & OEM Options

Overview

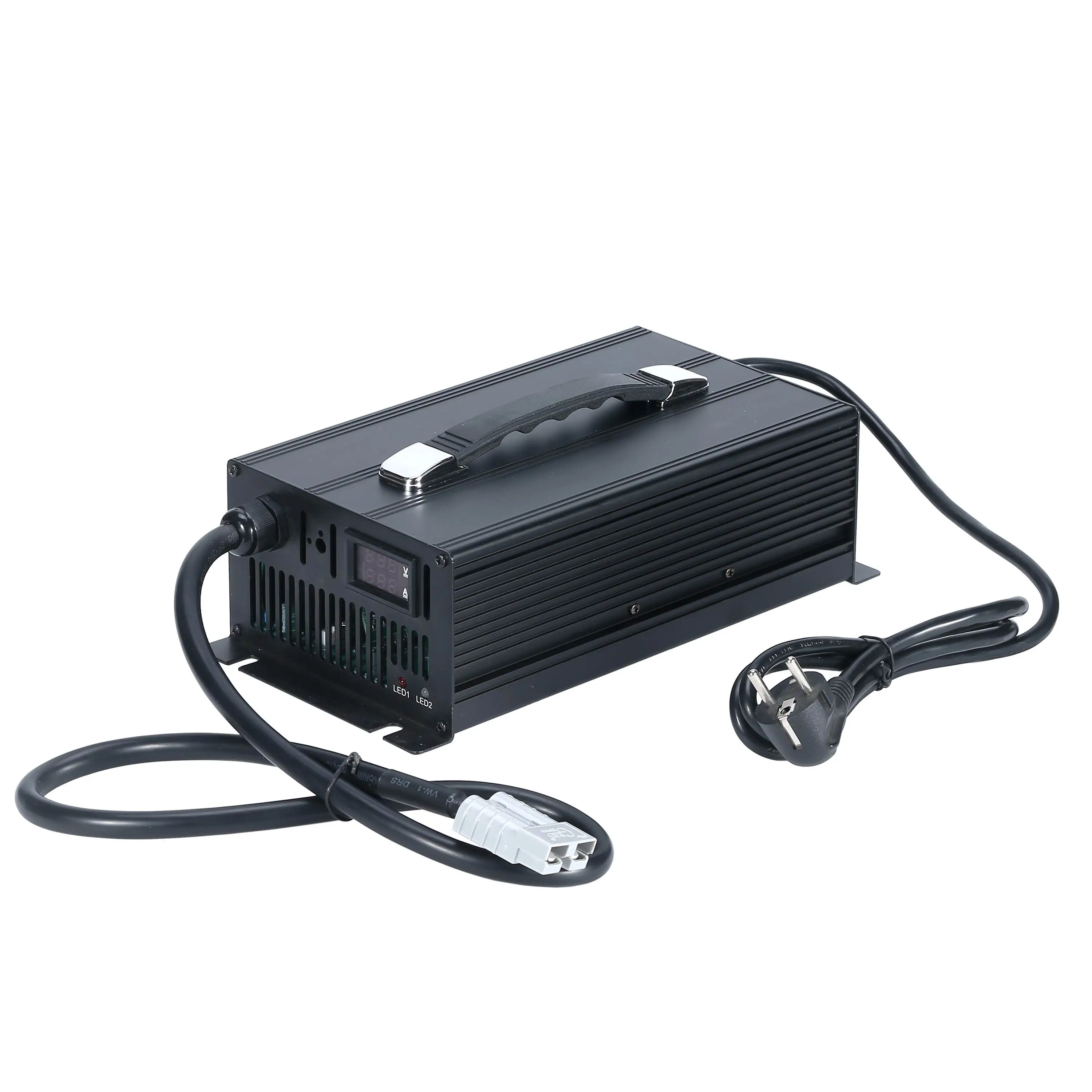

1500W 48V 25A Li-ion battery charger (Juxon010-1500A) for AGV, Forklift, Golf cart, Industrial equipment, Ma. Input: 100-240VAC. Built-in DC fan cooling. Aluminum alloy housing. Protection: Short Circuit Protection, Over Current Protection, Over Voltage Protection, Over Temperature Protection, Reverse Polarity Protection. CE, RoHS, FCC, KC certified. OEM/ODM custom voltage, connector & label available. It is offered under the model Juxon010-1500A. Rated at 1500W, it targets 48V battery systems. Below we break down what matters for sourcing and integration.

Technical Specifications

Target Applications

This charger is specified for the following use cases. Matching the charger to the application's duty cycle and environment is the first step in a reliable design.

• AGV — AGVs (automated guided vehicles) run continuous duty cycles in warehouses, so chargers must support opportunity charging and high uptime.
• Forklift — Forklifts require rugged, often high-voltage chargers with strong thermal and reverse-polarity protection for industrial shift operation.
• Golf cart — Golf carts are shifting from lead-acid to 48V LiFePO4; chargers must match the chemistry's higher end-of-charge voltage.
• Industrial equipment — Industrial equipment values deterministic charging profiles, full protection sets, and consistent output under load.
• Marine — Marine applications need moisture-resistant builds and stable output where salt-air corrosion and vibration are constant risks.
• RV — RV and leisure batteries benefit from multi-chemistry chargers that handle lead-acid and lithium alike.

How to Specify This Charger

Battery chemistry. Li-ion (NMC/LCO) cells charge to ~4.2 V/cell; a 48 V pack terminates near 54.6 V and offers high energy density.

Voltage match. The unit is built for 48V batteries with an end-of-charge output of 54.6V. Confirm your pack's series count against this termination voltage before integration.

Charge current. Rated output current is 25A. As a rule of thumb, charge time (hours) ≈ battery capacity (Ah) ÷ current (A) × 1.2 for the CV taper. Size current to your acceptable charge window and pack longevity target.

Connector. Default connector is Custom. Custom connectors and harnesses are available under OEM/ODM to match your existing harness.

Certifications & Compliance

Certification availability depends on the exact model and target market. The listed marks indicate the compliance scope supported for this product family:

• CE — CE marking for the European Economic Area.
• FCC — FCC authorization for the United States market.
• ROHS — RoHS compliance restricting hazardous substances.

Protection Features

Short Circuit Protection, Over Current Protection, Over Voltage Protection, Over Temperature Protection, Reverse Polarity Protection are built in to safeguard the battery and the end product during everyday operation.

OEM / ODM Customization

This charger is supplied as an OEM/ODM component. Typical customizations include output voltage and current tuning, connector and harness matching, enclosure and label branding, and firmware/indicator adjustments for your product line. Low-volume trial batches and full-production runs are both supported for qualified B2B projects.
