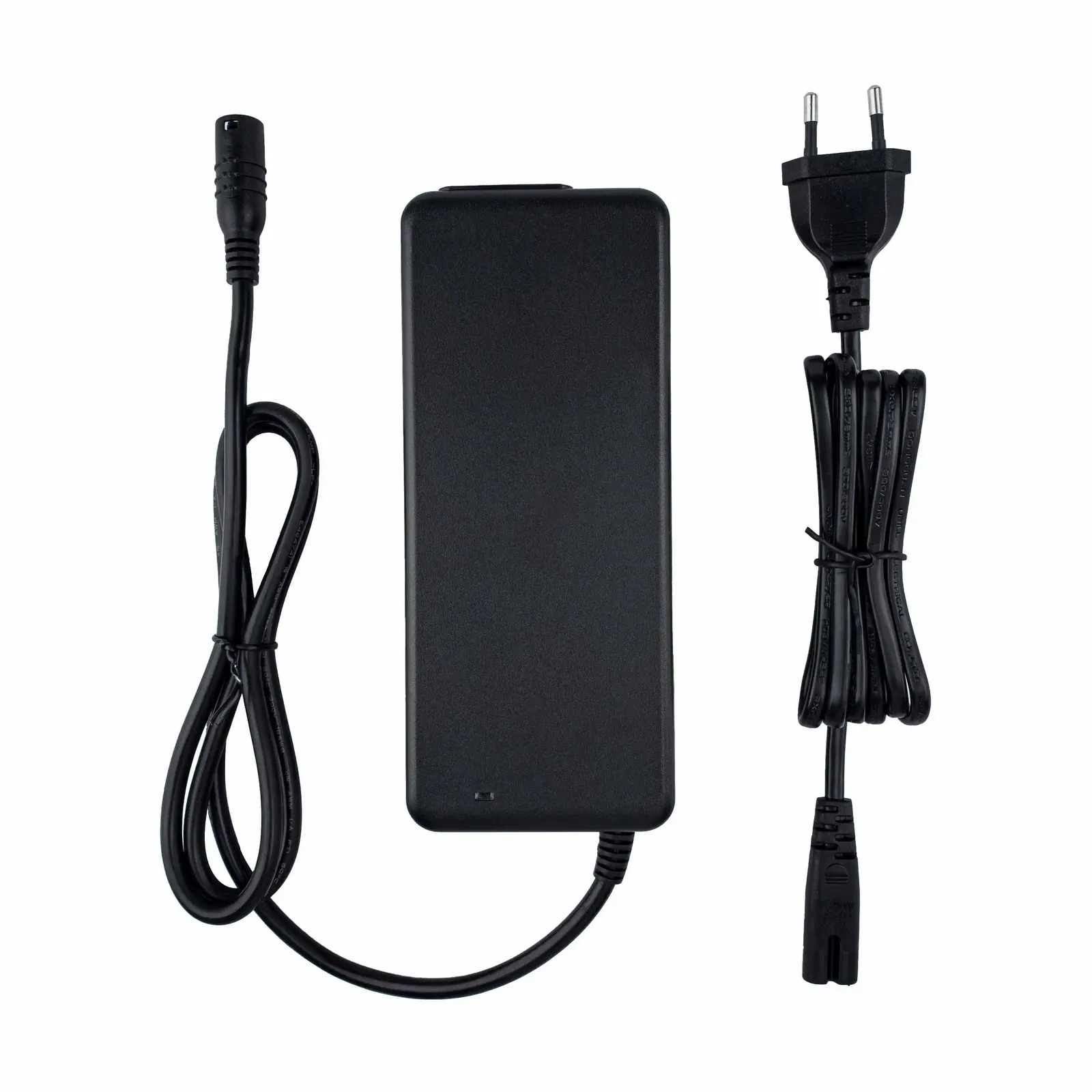

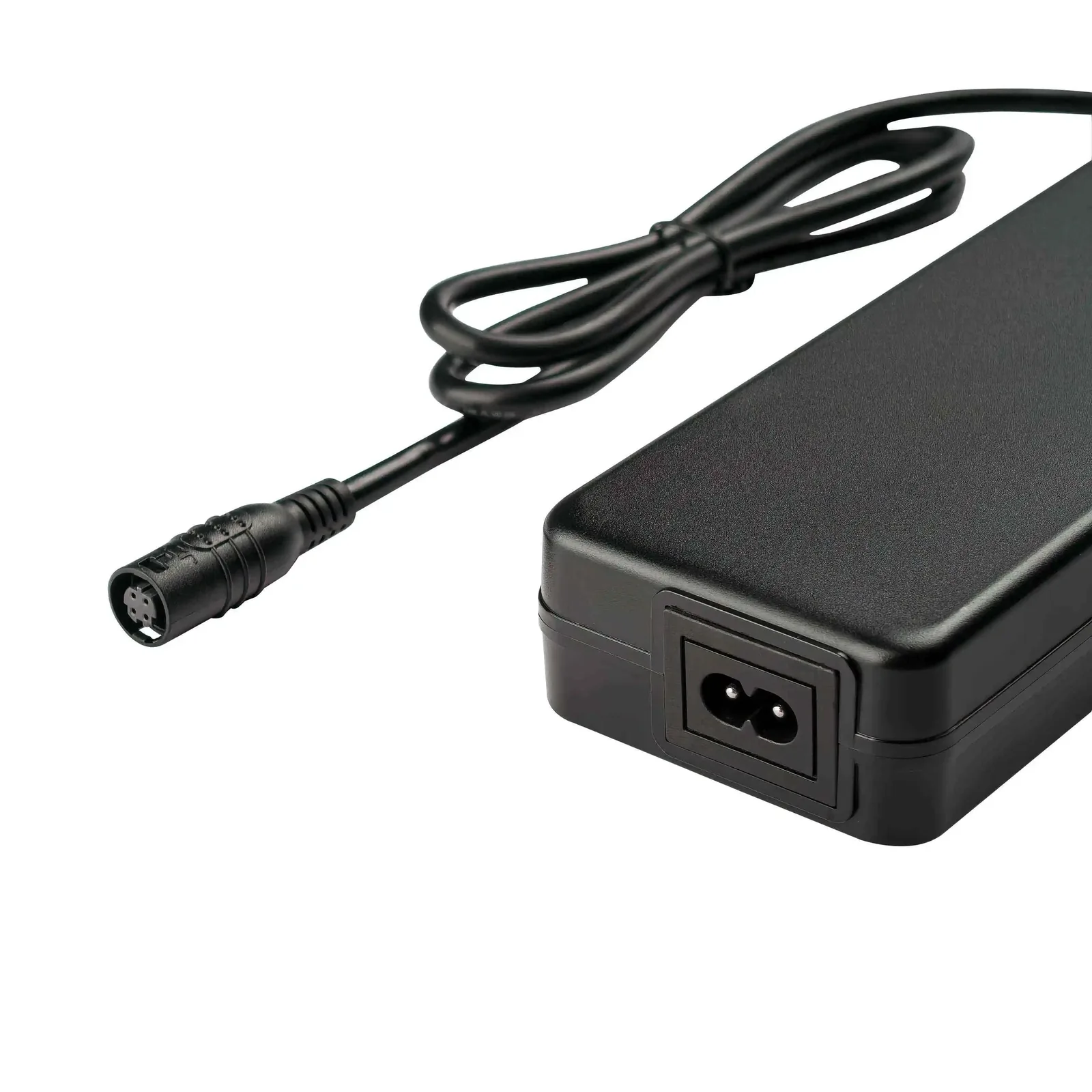

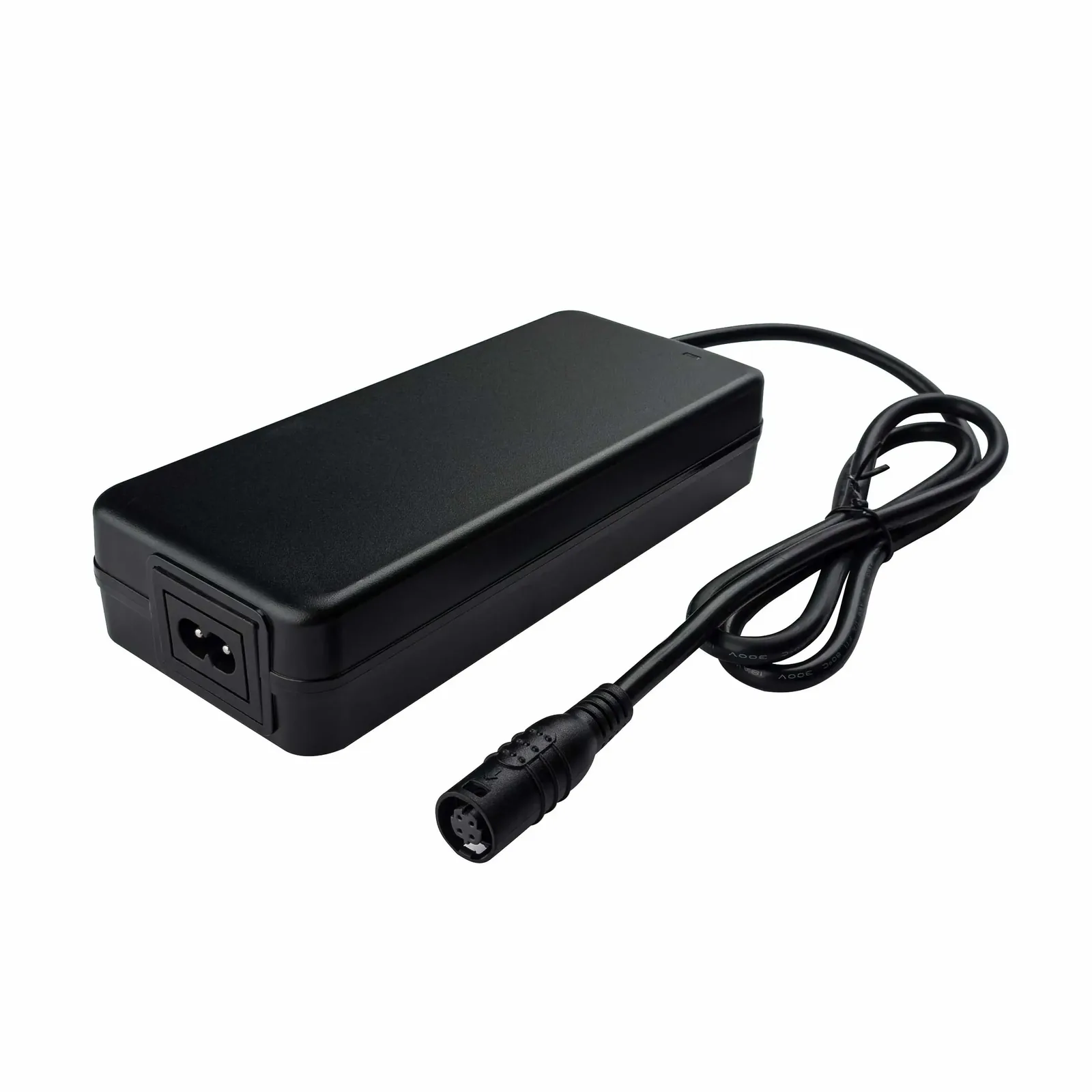

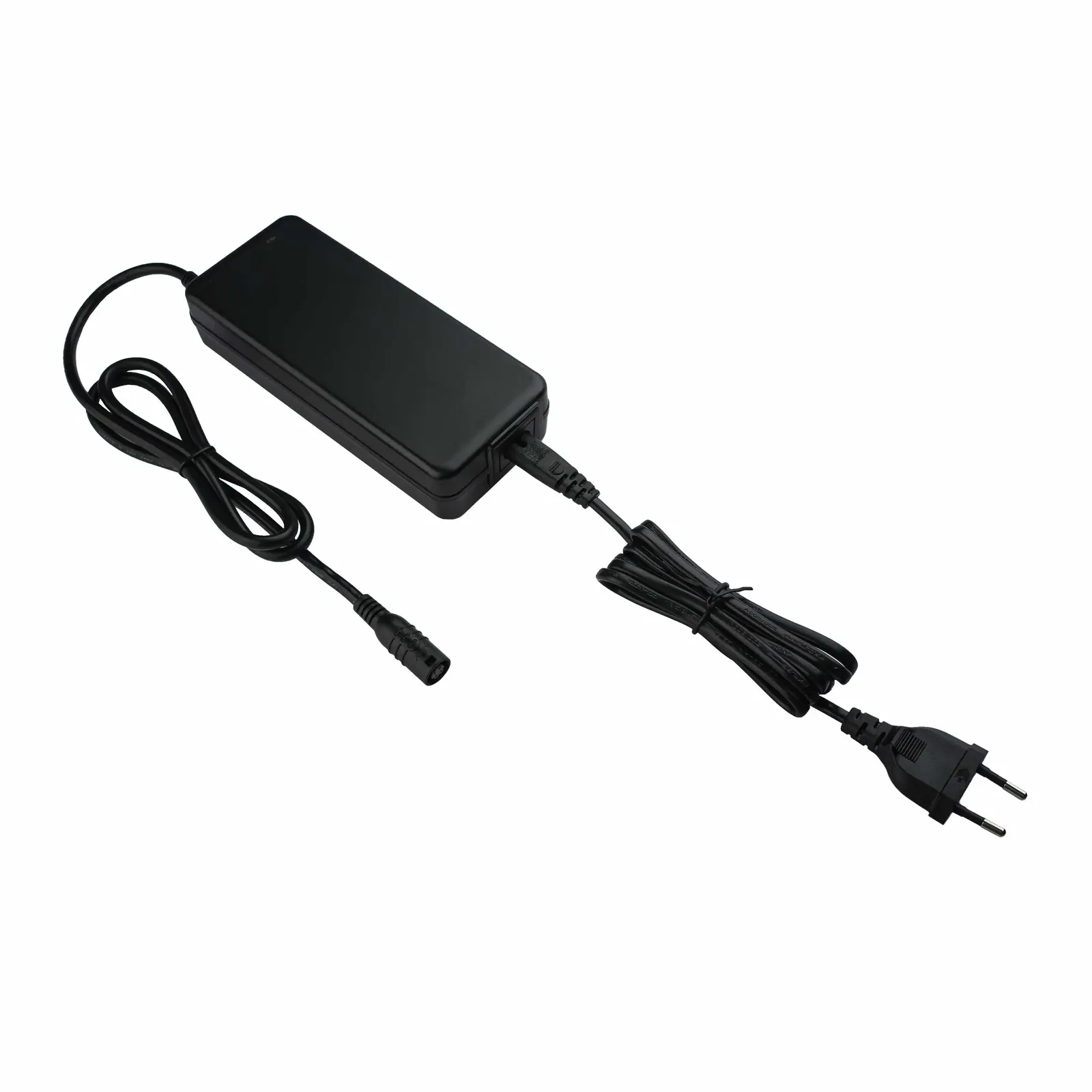

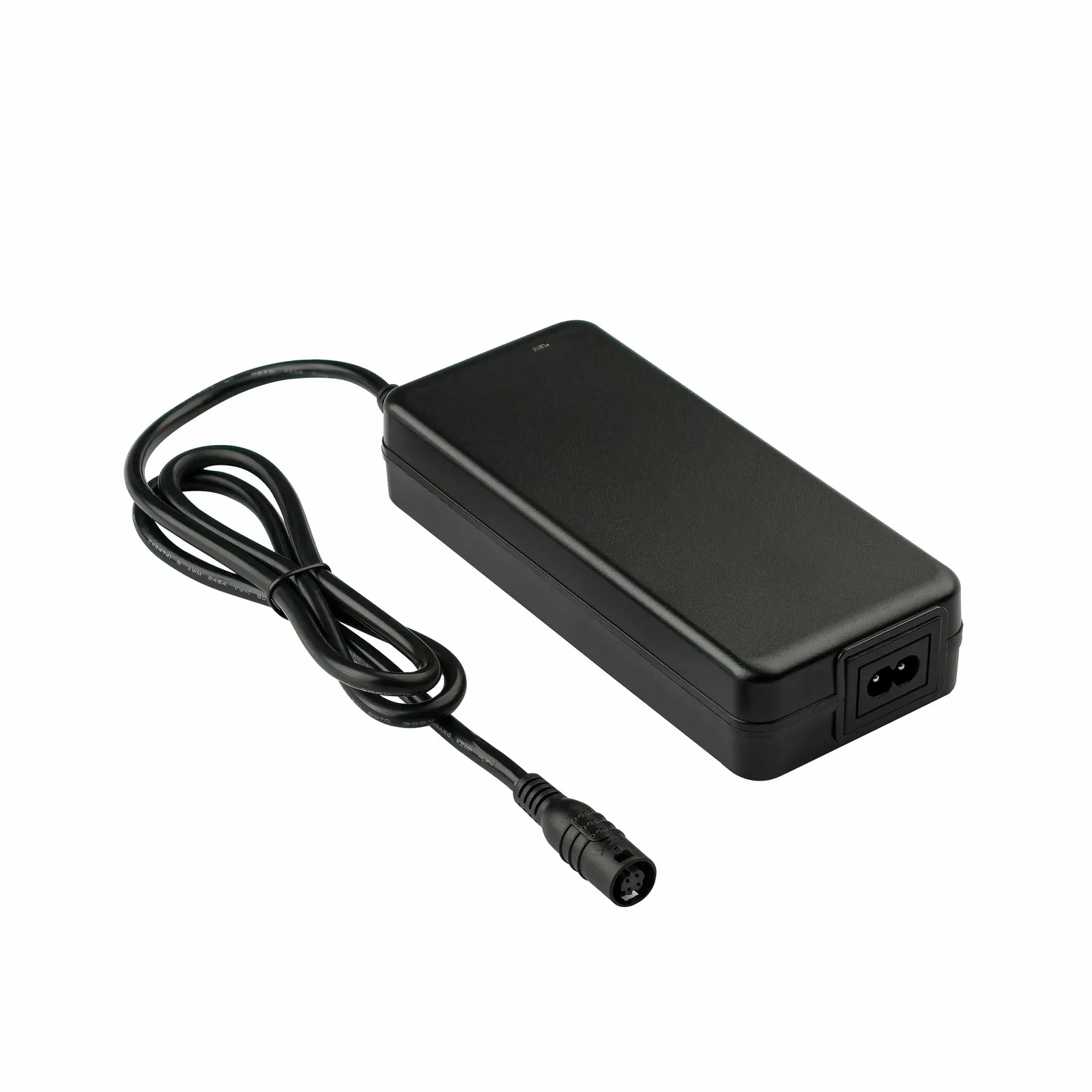

180W 42V 4A Li-ion e-bike Battery Charger
JUXON is a Shenzhen-based OEM/ODM manufacturer of the 42V 4A lithium-ion e-bike battery charger, built to your 42V 4A battery specification, CE, ROHS certified, supplied to e-bike and industrial customers worldwide since 2014.
- MOQ
- 200 pcs
- Manufacturing
- OEM / ODM
- Certifications
- CE, RoHS
- ServiceOEM / ODM
- MOQ200 pcs
- Lead time15–25 days
- CustomVoltage / Connector
Specyfikacje
| Model | Juxon010-180F |
|---|---|
| Power | 180W |
| Output Voltage | 42V |
| Charging Current | 4A |
| Battery Chemistry | Li-ion |
| Certifications | CE, RoHS |
Ładowarka akumulatorów litowo-jonowych 144W 36V 4A (Juxon010-180E) do E-roweru, E-skutera, skutera inwalidzkiego, elektrycznego vehi. Wejście: 100–240 V AC. Konwekcja naturalna lub chłodzenie wentylatorem. Czarny, ognioodporny plastik ABS (UL94 V-0). Ochrona: Ochrona przed przekroczonym prądem, ochrona przed przekroczonym napięciem, ochrona przed nadmierną temperaturą, ochrona przed odwróconą polaryzacją. Certyfikaty CE, RoHS, CB, TUV, SAA, PSE. Dostępne indywidualne wersje OEM/ODM pod względem napięcia, złączy i etykiet.
Obsługiwane konfiguracje akumulatorów (19)
| Cells | Cell V | Full V | Battery V | Charge V | Current |
|---|---|---|---|---|---|
| 2S | 3.6 | 4.2 | 7.2 | 8.4 | 12 |
| 3S | 3.6 | 4.2 | 10.8 | 12.6 | 12 |
| 4S | 3.6 | 4.2 | 14.4 | 16.8 | 10 |
| 5S | 3.6 | 4.2 | 18 | 21 | 6 |
| 6S | 3.6 | 4.2 | 21.6 | 25.2 | 5 |
| 7S | 3.6 | 4.2 | 25.2 | 29.4 | 5 |
| 8S | 3.6 | 4.2 | 28.8 | 33.6 | 5 |
| 9S | 3.6 | 4.2 | 32.4 | 37.8 | 4 |
| 10S | 3.6 | 4.2 | 36 | 42 | 4 |
| 11S | 3.6 | 4.2 | 39.6 | 46.2 | 4 |
| 12S | 3.6 | 4.2 | 43.2 | 50.4 | 3 |
| 13S | 3.6 | 4.2 | 46.8 | 54.6 | 3 |
| 14S | 3.6 | 4.2 | 50.4 | 58.8 | 3 |
| 15S | 3.6 | 4.2 | 54 | 63 | 1.5 |
| 16S | 3.6 | 4.2 | 57.6 | 67.2 | 2.5 |
| 17S | 3.6 | 4.2 | 61.2 | 71.4 | 2 |
| 18S | 3.6 | 4.2 | 64.8 | 75.6 | 2 |
| 19S | 3.6 | 4.2 | 68.4 | 79.8 | 2 |
| 20S | 3.6 | 4.2 | 72 | 84 | 1.5 |
Atrybuty techniczne (5)
| Input Voltage | AC 100-240v, 50/60Hz |
|---|---|
| Charging Mode | CC/CV (Constant Current / Constant Voltage) |
| Protection | Over Current Protection, Over Voltage Protection, Over Temperature Protection, Reverse Polarity Protection |
| Cooling | Natural convection or fan cooling |
| Housing | Black flame-retardant ABS plastic (UL94 V-0) |
Free OEM/ODM consultation · Quotation within 24 hours · Global shipping
Dostępne opcje złącz (1)
To ładowarka jest dostępna z następującymi interfejsami złączowymi. Podaj wymaganą przez siebie interfejs podczas składania zapytania ofertowego.
Yamaha HRS/PASC5 4-pin
Yamaha外置或半内置36V电池系统的快速充电；适合家用、门店及货运车队。
Compatible: Yamaha625wh CrossConnect、CrossCore、Urban Rush、Wabash、Civante、YDX Torc；Winora Radius Tour、Yakun Tour；Babboe City、Curve、C…
You may also like
Frequently asked questions
What battery does the Juxon010-180F charger work with?
The Juxon010-180F is designed for Li-ion battery systems and delivers 42V at 4A. It matches the nominal and full-charge voltage of the target pack automatically.
What output does the Juxon010-180F provide?
Output: 42V at 4A. Rated power is around 180W.
Which certifications does the Juxon010-180F carry?
It is certified to CE, ROHS. Market-specific marks can be added on request.
Can JUXON customize the connector and housing?
Yes. We build chargers around your exact connector, cable and housing specification for OEM and ODM programs. Send us your mating connector or datasheet.
What is the minimum order quantity (MOQ)?
MOQ is 200 pcs. Lower quantities may be available for sampling — ask our sales team.
Do you provide OEM/ODM manufacturing?
Yes. JUXON is an OEM/ODM lithium battery charger manufacturer with ISO 9001 and ISO 14001 certified production, supporting private-label and custom designs.
Where can I buy a 42V 4A lithium-ion e-bike battery charger?
JUXON supplies the 42V 4A lithium-ion e-bike battery charger directly to B2B buyers through our OEM/ODM program. Request a quote and our engineering team matches voltage, connector and BMS to your battery pack.
Do you make a custom e-bike charger with my connector?
Yes. We design e-bike chargers around your exact connector, cable and BMS specification. Send your mating connector or datasheet and we return a matched sample for validation.
